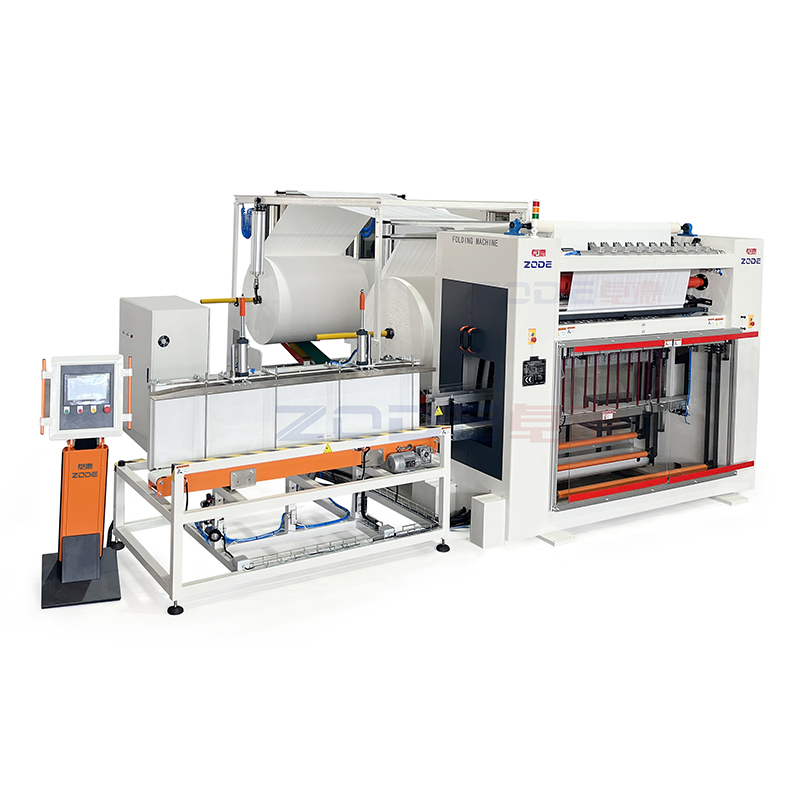

ZD-7L Automatic bottom pulling tissue paper folding machine

1

Unwinder stand part

2

set

Maximum diameter of parent reel 1500mm

2

Folding main machine

1

set

3

Inner transfer part

1

set

4

Motion Control System

1

set

5

Embossing unit

2

set

Optional: Steel to rubber, steel to steel, steel to wool

6

Glue lamination unit

2

set

Optional

7

Tissue paper logs output  the wall panel in the machine

1

set

Save space, with this function, no half fold function overturning the half fold sheet to the top function

8

Height tissue paper logs

1

set

Optional, such as 200-500 sheets products, the height is below 450mm (the number of layers grams of paper are different, the height is different), like hanging type tissue/ bottom pulling tissue paper, tissue paper logs can output directly the side of the wall panel. There is an external material belt clamping device connecting with the wall panel, it can turn 90°, then tissue paper logs directly go into log saw cutting machine.

1

Machine model

ZD-7L         ZD-8L      ZD-10L     ZD-14L

1.1

Maximum raw paper width

1500mm     1740mm    2000mm    2800mm

1.1

Design speed

120 m/min

1.2

Production speed

80-120m/min （relate to the quality of the raw paper）

1.3

Folded size of finished product(mm)

95mm（+2，-2）   （Please specify if you need other sizes）

1.4

Unfolded size of finished product(mm)

190mm（+2，-2）  （Please specify if you need other sizes）

1.6

Finished product height(mm)

40mm-450mm（before packing）

1.7

Raw paper diameter

≤￠1500mm

1.8

Sheets setting method

Set directly on the touch screen (even number)

1.9

Counting method

Using high resolution servo operation, the count is 100% accurate

2.0

Adapt to the raw paper quantity

12-22 g/㎡  (The gram weight of the paper  the number of layers is different, the total gram weight is different)
